Description

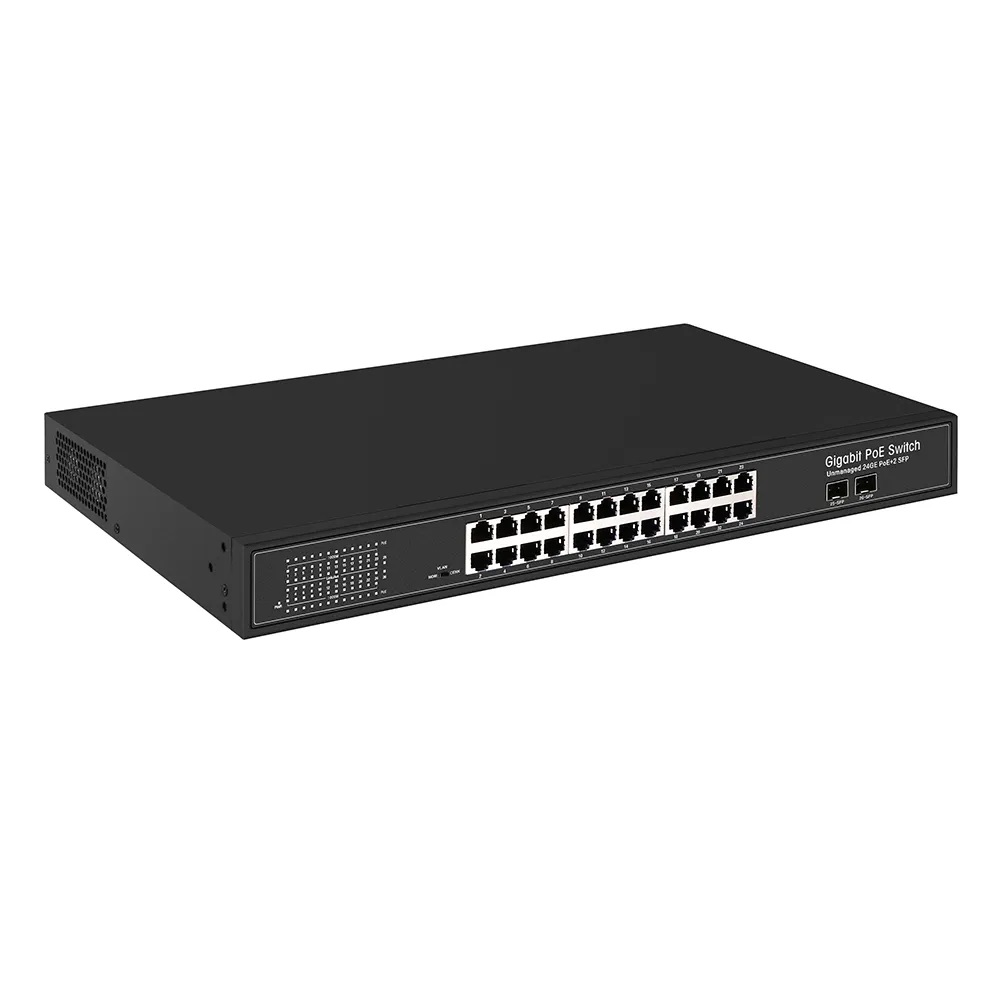

Luminetworx™ 24 port 1200 watt PoE switch. PoE managed network switch providing 1200 Watts of power Luminetworx? PoE++ network switch. As part of the ever growing trend of PoE lighting, power supplies have never been more important. PoE Office brings you a managed network PoE switch that was specifically designed for PoE products demanding consistently high power requirements. For example PoE lighting, Poe Computers, PoE monitors and more.
| Fixed Port |
24GE* BT_90W 4*COMBO |
| Console Port |
1*console port |
| Reset Key | 1 |
| Network Protocol |
IEEE 802.3x |
| Port Specification |
10/100/1000BaseT(X)Auto |
| Transmission Mode |
Store and Forward(full wire speed) |
| Bandwidth |
56/128Gbps |
| Packet Forwarding |
40.32 Mpps |
|
MAC Address |
8K |
| Buffer | 4.1M |
|
Transmission Distance |
10BASE-T : Cat3,4,5 UTP(?250 meter) 100BASE-TX : Cat5 or later UTP(?100 meter) 1000BASE-TX : Cat6 or later UTP(?1000 meter) 1000BASE-SX:62.5?m/50?m MMF(2m~550m) 1000BASE-LX:62.5?m/50?m MM(2m~550m) or 10?m SMF(2m~5000m) |
|
FLASH |
16M |
|
RAM |
128M |
|
LED Indicator |
PWR:Power LED |
|
Power |
Built-in power AC 100~240V 50/60HZ |
|
Watt |
1200 |
|
Operating Temperature/Humidity |
-20~+55?C;5%~90% RH Non coagulation |
|
Storage Temperature/Humidity |
-40~+75?C;5%~95% RH Non coagulation |
|
Product size/Packing size(L*W*H) |
440mm*290mm*45mm 515mm*375mm*95mm |
|
N.W/G.W(kg) |
3.4kg/4.2kg |
|
Installation |
Rack-mount(optional machine hanger spare parts) |
|
Lightning protection level |
3KV 8/20us; IP30 |
|
Certificate |
CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS; |
|
Warranty |
Whole device for 1 year(Accessories not included) |
